Price: $195.00 Sale Price: No Price Availability: in stock Prod. Code: T5 NWC MASTER

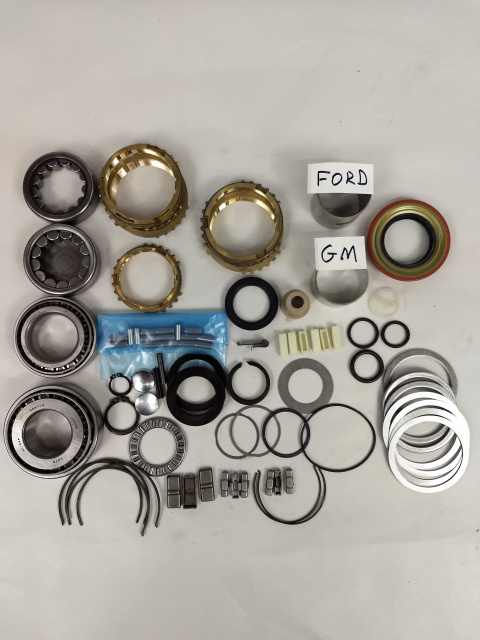

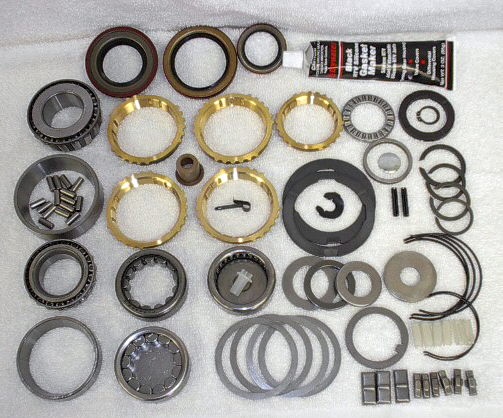

T5 Non World Master Rebuild Kit.

Includes:

• 1st, 2nd, 3rd, 4th and 5th brass synchronizer rings
• front and rear seals - Rear seal is not available for Nissan/Datson applications
• rear tail housing bushing - Not available for Nissan/Datson applications  Bushings may need to be reamed or honed after installation for proper fit.
• input roller bearings (15)
• Koyo & Torrington Hi Cap heavy duty Bearings included:
•      all main shaft bearings
•      all counter shaft bearings
• countershaft to case thrust washer
• shift fork pads
• front bearing preload shims
• synchronizer keys
• retaining springs
• shifter bushing
• speedo clip
• c-clip
• funnell
• o-ring
• roll pin
• snap rings
• spacer washers

T5 non world kit will fit:

GM Camaro & Firebird 1982-87

GM S10 / S15 Pickup 1982-2004

Ford 1979-84

AMC Jeep 1983-85

Datsun/Nissan

If you are unsure of the year and the unit is disassembled, if it has ALL brass synchro rings, it is a non world class. Feel free to email us to ensure you are getting the correct kit for your transmission.

If your unit has a tag bolted to the tailhousing 1352-000-XXX, the following #'s are non world T5 transmissions:

001,     002,     004 thru 008,     010,     012,     013,     015 thru 018,     026 thru 028,

032 thru 035,     042,     043,      047 thru 049,     051,     052,     054 thru 056,     058,

059,     061,     062,     065 thru 068,     070 thru 072,    074 thru 078,     080,     081,

083 thru 086,   102,     107,     108,     110,     136,     145,     146,     151,     156,     157,

164,     166,     170,     181 thru 183,     185,     187,     189 thru 193,     201,     206,

208,     211,     216,     234,     239,     245,     250,     252,     259
